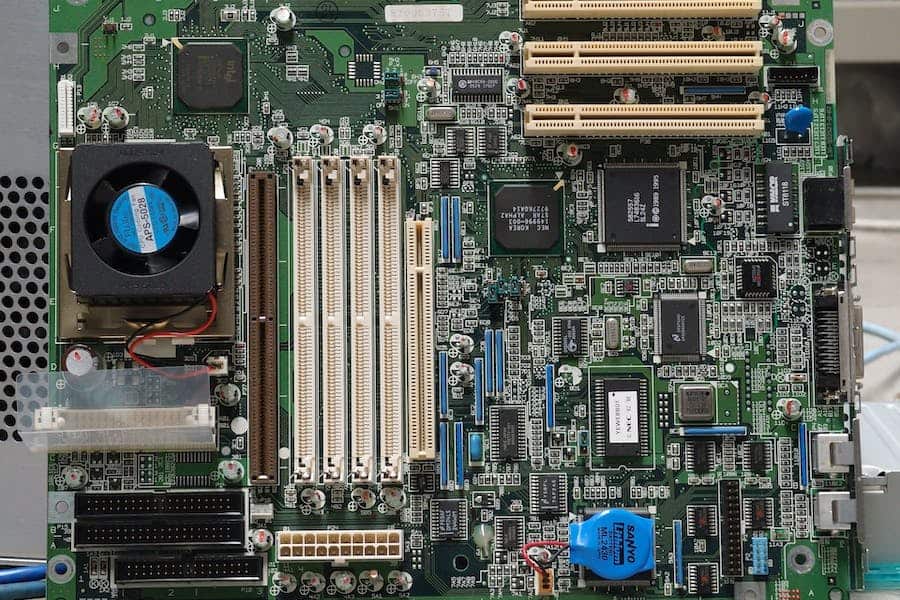

Are you a PC enthusiast or a casual user looking to optimize your computer’s cooling system for better performance and longevity? One of the critical aspects of maintaining a cool and efficient PC is proper fan installation. But where to plug in fans on the motherboard can be a bit confusing, especially if you’re new to building or upgrading your computer.
In this comprehensive guide, we’ll walk you through the process of finding the right fan headers on your motherboard and show you how to connect your fans correctly. Whether you’re adding extra cooling power for gaming or simply want to keep your system running smoothly, understanding how to connect fans to your motherboard is essential.
Why Proper Fan Connection Matters?
Before we dive into the step-by-step instructions, let’s first understand why it’s crucial to connect your fans correctly to the motherboard.
Temperature Control:
Proper fan placement and connection allow your motherboard to regulate fan speed based on temperature, ensuring that your PC stays cool under heavy workloads or gaming sessions. This prevents overheating and potential damage to your components.
Reduced Noise:
By connecting your fans to the motherboard, you enable the system to adjust fan speed as needed. This results in quieter operation when your PC is idling and more aggressive cooling when it’s required, striking the right balance between cooling and noise.
Extended Component Lifespan:
Cooler temperatures help extend the lifespan of your PC components, including your CPU and GPU. Overheating can lead to premature wear and tear, causing you to replace parts more frequently. Now that you understand the importance of proper fan connection, let’s get into the practical steps to guide you through the process.
Step 1: Identify Your Motherboard Fan Headers
The first step is to locate the fan headers on your motherboard. These headers are typically located near the CPU socket and labeled as “CPU_FAN,” “SYS_FAN,” or similar variations. Each header can support one fan, so take a moment to identify how many fan headers your motherboard has.
Step 2: Check Your Fan Type
Before connecting your fans, it’s essential to understand the types of fans you have. There are generally two main types:
- 3-Pin Fans: These fans are straightforward and have three wires – one for power, one for ground, and one for monitoring fan speed. They can be connected to either 3-pin or 4-pin headers on the motherboard, but you’ll have limited control over fan speed.
- 4-Pin PWM Fans: PWM stands for “Pulse Width Modulation.” These fans have four wires and provide more precise control over fan speed. They should be connected to 4-pin headers on the motherboard for optimal performance.
Step 3: Plug In Your Fans
Now that you’ve identified your motherboard fan headers and determined the fan type, it’s time to connect your fans. Here’s how to do it:
- 3-Pin Fans: If you have 3-pin fans, you can plug them into either 3-pin or 4-pin headers. Align the notch on the fan connector with the tab on the header and gently push it in until it’s secure. Be sure to match the labels correctly – the black wire should align with the ground pin on the header.
- 4-Pin PWM Fans: For 4-pin PWM fans, it’s best to use 4-pin headers for precise speed control. Again, align the notch on the connector with the tab on the header and push it in. These fans offer better speed control and are ideal for fine-tuning your system’s cooling.
Step 4: Cable Management
Proper cable management not only keeps your PC looking clean but also ensures that the fan cables don’t obstruct airflow or interfere with other components. Use cable ties or Velcro straps to secure the fan cables neatly along the edges of your case.
Step 5: BIOS Configuration
Once your fans are connected, it’s a good practice to enter your motherboard’s BIOS or UEFI settings to configure the fan speed control. Look for options related to “fan control” or “fan settings.” Here, you can set temperature thresholds and fan curves to optimize cooling performance. Remember, the BIOS settings can vary from one motherboard manufacturer to another, so consult your motherboard’s manual for specific instructions.
Step 6: Testing And Monitoring
After connecting your fans and configuring the BIOS settings, it’s time to test your system. Run some resource-intensive applications or games to see how your cooling system performs. You can also use software tools like SpeedFan or HWMonitor to monitor temperatures and fan speeds in real-time.
Troubleshooting Tips
If you’re facing issues with your fan connections or cooling performance, here are some quick troubleshooting tips:
- Check Connections: Ensure fans are securely connected to motherboard headers.
- Reconfigure BIOS Settings: Adjust fan curves or temperature thresholds in BIOS.
- Update Motherboard BIOS: Keep your motherboard’s BIOS updated for better compatibility and fan control options.
- Use Fan Splitters: When you have more fans than headers, consider fan splitters but avoid overloading a single header.
- Replace Faulty Fans: If a fan isn’t working correctly, replace it promptly.
- Inspect For Obstructions: Clean your PC’s interior and organize cables to prevent airflow blockage.
- Check Fan Direction: Ensure fans are correctly oriented for proper airflow.
- Monitor Temperatures: Keep an eye on system temperatures for any unusual spikes.
- Consider Aftermarket Coolers: Upgrade CPU or GPU coolers for improved thermal performance.
These tips will help you troubleshoot fan-related issues efficiently and maintain your system’s cooling effectiveness.
Conclusion
Ensuring your PC’s cooling system functions at its best doesn’t have to be daunting. By correctly connecting fans to your motherboard, troubleshooting common issues, and monitoring temperatures, you can maintain a cool and efficient system. Remember to match fan types with appropriate headers, configure BIOS settings as needed, and consider fan splitters cautiously. Promptly replacing faulty fans and maintaining a clutter-free case interior are equally important steps. Monitoring temperatures is key to hardware longevity and peak performance. With these insights, you’re well-prepared to tackle cooling challenges and enjoy a more efficient and stable computing experience.
FAQ’s
Can I Plug Any Fan Into Any Fan Header On My Motherboard?
It’s essential to match the fan type with the appropriate header. Connect CPU fans to the CPU fan header and case fans to system fan headers. Using the wrong header may result in improper cooling.
Is It Safe To Use Fan Splitters To Connect Multiple Fans To One Header?
Yes, but exercise caution. Fan splitters allow you to connect multiple fans to a single header. However, be mindful of the header’s maximum wattage capacity to avoid overloading it.
Why Is It Important To Monitor Temperatures On My PC?
Monitoring temperatures helps you ensure that your cooling system is functioning correctly and prevents components from overheating. Overheating can lead to performance issues and potentially damage your hardware.
